Constraint Log

The Constraint Log lives in the Plan Settings Bar on the top center of the Pull Plan. Click on the list icon on the right of the Weekly Work Plan icon to open the Constraint Log.

Figure 1. Constraint Log.

You can filter through the Teams, Assignees, Statuses, Creators, and Required Dates of all the Constraints found within the Workspace, whether or not they are implemented in the timeline of the Pull Plan.

Constraints with conflicts will have the conflicting fields highlighted in red and can be flagged for several reasons including:

• Promised Date is after Required Date
• Created Date is after Required Date

In the same way you can program your desired view of the Weekly Work Plan, use the filters at the top of the Constraint Log to display the needed information and click on the Export to PDF button on the bottom right corner.

Figure 2. Constraint Log PDF Export.

You can also include the Constraint Log to the Weekly Work Plan PDF Export by opening the WWP and clicking the checkbox that says Include constraint log in WWP export on the bottom left corner, illustrated in Figure 3.

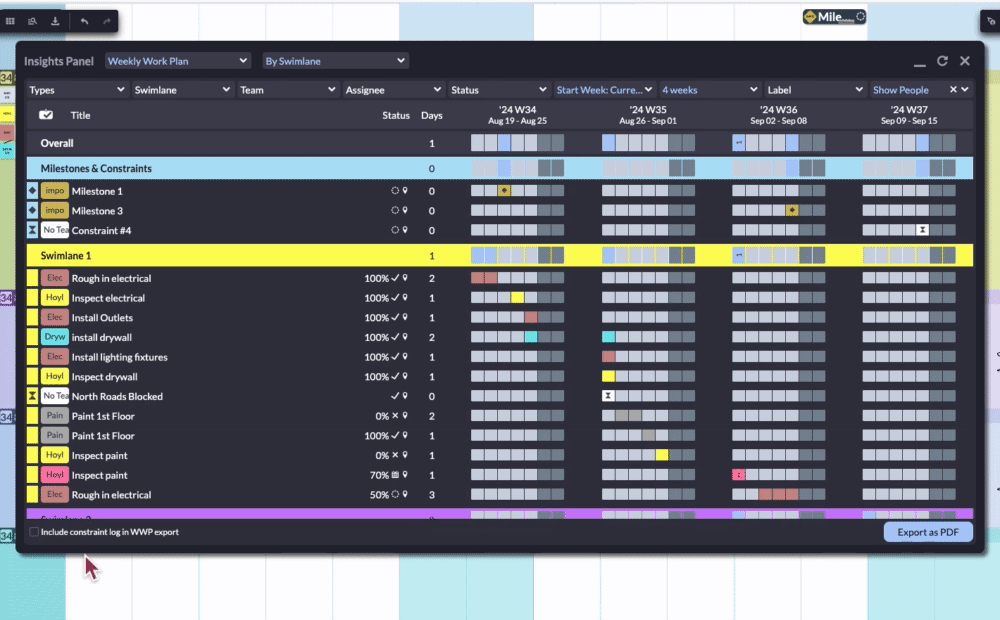

Figure 3. Include Constraint Log with WWP export.

😎  Pro-Tip: If you would like to export your Constraints, but you have another way of organizing them, for example in a Table or a Board, you can Bookmark the Page with your log and add it to the Weekly Work Plan. See this article for more information.
